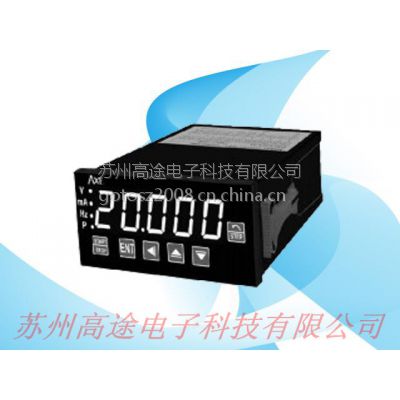

| 品牌：台湾AXE | 型号：MDFG-BN | 加工定制：是 |
| 测量精度：0.05 | 结构型式：盘面安装 | 显示方式：LED |
| 外形尺寸：96*48mm | 开孔尺寸：92*44mm |
■特點(FEATURES)
●精確度0.05%滿刻度 (Accuracy 0.05% F.S.
●可顯示與產生精密直流毫安電流,直流電壓,頻率(脈波)(Calibrator for DCmA and DCV and Frequency(Pulse))
●可模擬90度相位差脈波輸出功能(Simulator A,B phase different 90 output function)
●高解析度類比輸出功能(15bit DAC)(15 bit DAC analog output function)
●類比輸出範圍0至20.000毫安培(0至10.000伏特)(Output range for DC 0 to 20.000mA(DC 0 to 10.000V)
●寬範圍頻率輸出功能10Hz至4KHz(Wide output range for frequency 10Hz to 4KHz)
●寬範圍脈波輸出功能1至10000個(Wide output range for pulse 1 to 10000 count)
●尺寸小,穩定性高(Dimension small and High stability)
